ControlUp EdgeDX: Custom Fields and Populating Meta_Strings

In this Slack discussion from ControlUp, a user asked about the availability of custom fields in EdgeDX. Another user mentioned the meta_string_1 through 3 fields which can be populated by running scripts on the endpoint. A sample script was shared by a member and it was suggested to use JSON format when writing to these fields. The discussion also includes a link to the ControlUp support page for scripting and creating custom indexes.

Read the entire ‘ControlUp EdgeDX: Custom Fields and Populating Meta_Strings’ thread below:

one more thing, sorry these are all different questions: any custom fields available to write to in EdgeDX?

maybe related to above, but I see meta_string_1 through 3 that look blank today. can I write to this with the API?

meta_string_1string

A generic field allowing for bespoke customer-specific device information.

meta_string_2string

A generic field allowing for bespoke customer-specific device information.

meta_string_3string

A generic field allowing for bespoke customer-specific device information.

going to try this today

you can create custom indexes not custom metrics that show n the machine see https://support.controlup.com/docs/scripting-guide

Those 3 fields are special. There are scripts you can run on the endpoint that will populate those fields. I’ll see if I can dig a sample up but @member would surely have them.

The important part here is $department. I’ll simplify it. Replace YourContentGoesHere with whatever you want to go into the field. Line 8.

$token = Get-Content ‘C:\ProgramData\Avacee\sip_agent\cachefiles\DeviceAccessToken.txt’

$tokenHeader = $token.Substring(4)

$tenantfromRegistry = Get-ItemPropertyValue -Path HKLM:\SOFTWARE\Avacee\SIP -Name tenant

$tenantname = "$tenantfromRegistry"

[hashtable]$headers = @{}

$headers.Add(‘x-access-token’, $token)

$body = @{}

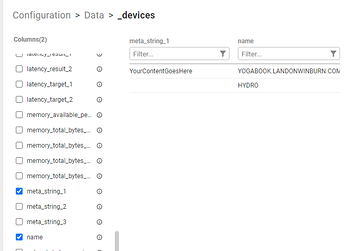

$body.Add(‘meta_string_1’, "YourContentGoesHere")

Fails if not converted to JSON first

$jsnBody = $body | ConvertTo-Json -Depth 100

$uri = "https://$tenantname/api/device/update"

Invoke-RestMethod -Uri $Uri -Method POST -Headers $headers -Body $jsnBody -ContentType ‘application/json’

😄

yeah I just copy/pasted an existing use case

Know that one well, lol

thank you guys!
